How are graphite crucibles made?

Graphite crucibles are vital in many industries that melt or cast metals or other materials. Knowing how these integral tools are made helps to understand their usefulness and adaptability. This article discusses how graphite crucibles are made, what materials are used, and some of the common questions potential customers may ask, such as why graphite is used to make crucibles and whether glass can or cannot be melted in a graphite crucible.

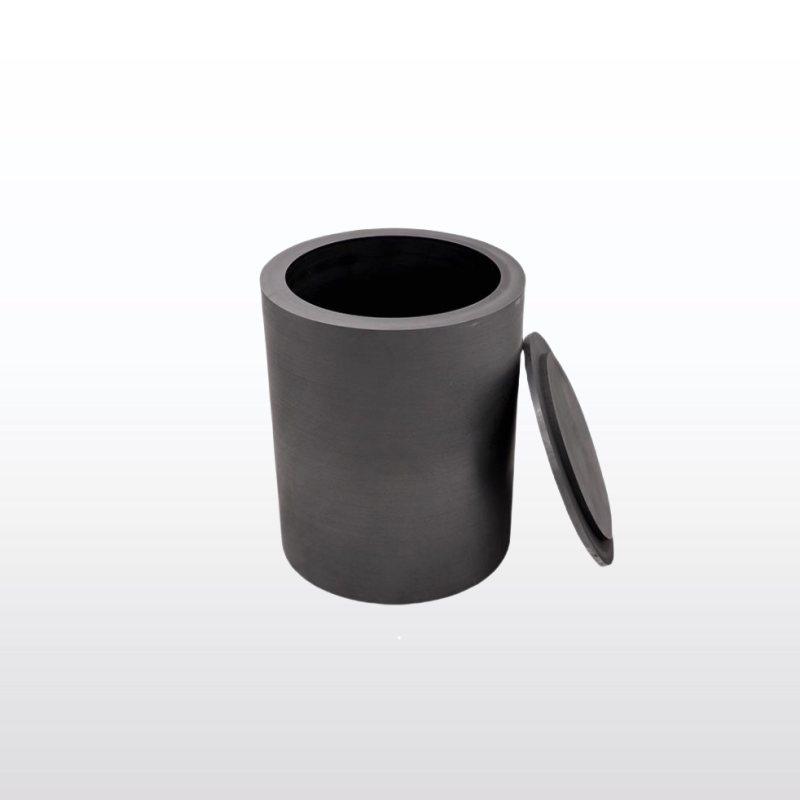

Understanding Graphite Crucibles

It’s essential to first understand what graphite crucibles are before you delve into how they are made. Graphite crucibles are designed specifically for use in high-temperature situations where extreme heat could deform the crucible. This invulnerability to deformation means that graphite crucibles can provide unique benefits in many different industries, including those involved in manufacturing metals, making glass, and producing jewelry.

The Manufacturing Process of Graphite Crucibles

The process of making graphite crucibles consists of several key steps:

1. Material Selection: Natural flake graphite is the primary component used to manufacture a graphite crucible. The grade of the graphite will depend on the quality (purity) and the physical performance Baking temperature or Reducing Binders/or Materials adds high durability to the crucible by adding clay to the composition. When manufactured with clay, these crucibles are referred to as “clay graphite crucibles.”

2. Mixing: Graphite particle size selection, along with an appropriate binder and additive, is necessary to produce an ideal result. Additionally, water is sometimes added to create one single homogeneous blend for use in mold making.

3. Molding: Once the mixed media has been mixed well, it is put into a mold. This can be accomplished by different methods such as pouring, pressing and/or extruding the mixture into the desired shape and size to create the crucible. Small graphite crucibles can be created by any one of those methods to meet various applications.

4. Drying: The drying of the crucibles takes place after they are formed in the mould. This is a critical process to remove the extra moisture from the crucibles before they go through the heating cycle, as moisture could cause defective parts in the firing phase of the crucible’s development.

5. Firing: Next, the dried crucibles are placed in a high temperature kiln to activate the binders and create a complete structure that has an increased resistance level and greater thermal stability.

6. Finishing: Crucibles go through a number of finishing operations after being fired, including grinding, polishing and coating for performance enhancement, thus producing a strong crucible suitable for high temperatures.

Why Are Crucibles Made of Graphite?

Graphite’s extreme temperature resistance makes it extremely useful in crucibles (exceeding 3000°C) and allows for even distribution of heat through good thermal conductivity which reduces the possibility of hot spots; this can cause material failure if this occurs when melting metals or alloys inside crucibles. Another reason why graphite is ideal for melting many metals/alloys is due to its chemically stable nature; therefore, it does not chemically react with the majority of metals/alloys as they are melted.

Can I Melt Glass in a Graphite Crucible?

Glass is able to be melted in a crucible made of graphite. Graphite’s thermal resistance and stability, especially in extreme conditions, is advantageous when making glass. The crucible must also be heated properly and be of appropriate quality to ensure no contamination of the resulting glass (due to graphite).

Conclusion

To sum up, producing graphite crucibles requires choosing materials; blending and mixing accurately and in specific amounts; shaping them; then heating them over long times at high temperatures. The characteristics of these crucibles are such that they make excellent choices for many types of processes. If you are a hobbyist wanting small graphite crucibles for melting glass or you are a manufacturer needing larger graphite crucibles, knowing how they are made will help you to buy them wisely.
