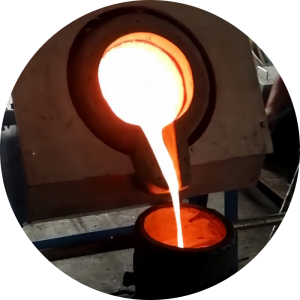

High-Performance Crucible furnace for melting aluminum and copper
Technical Parameter
Power Range: 0-500KW adjustable
Melting Speed: 2.5-3 hours/per furnace
Temperature Range: 0-1200℃
Cooling System: Air-cooled, zero water consumption
|
Aluminium Capacity |
Power |
|
130 KG |
30 KW |
|
200 KG |
40 KW |
|
300 KG |
60 KW |
|
400 KG |
80 KW |
|
500 KG |
100 KW |
|
600 KG |
120 KW |
|
800 KG |
160 KW |
|
1000 KG |
200 KW |
|
1500 KG |
300 KW |
|
2000 KG |
400 KW |
|
2500 KG |
450 KW |
|
3000 KG |
500 KW |
|
Copper Capacity |
Power |
|
150 KG |
30 KW |
|
200 KG |
40 KW |
|
300 KG |
60 KW |
|
350 KG |
80 KW |
|
500 KG |
100 KW |
|
800 KG |
160 KW |
|
1000 KG |
200 KW |
|
1200 KG |
220 KW |
|
1400 KG |
240 KW |
|
1600 KG |
260 KW |
|
1800 KG |
280 KW |
|
Zinc Capacity |
Power |
|
300 KG |
30 KW |
|
350 KG |
40 KW |
|
500 KG |
60 KW |
|
800 KG |
80 KW |
|
1000 KG |
100 KW |
|
1200 KG |
110 KW |
|
1400 KG |
120 KW |
|
1600 KG |
140 KW |
|
1800 KG |
160 KW |
Product Functions
Preset temperatures & timed start: Save costs with off-peak operation
Soft-start & frequency conversion: Automatic power adjustment
Overheat protection: Auto shutdown extends coil life by 30%
Advantages of High-Frequency Induction Furnaces

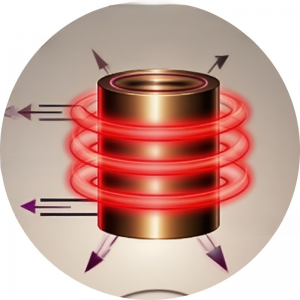

High-Frequency Eddy Current Heating
- High-frequency electromagnetic induction directly generates eddy currents in metals
- Energy conversion efficiency >98%, no resistive heat loss
Self-Heating Crucible Technology
- Electromagnetic field heats the crucible directly
- Crucible lifespan ↑30%, maintenance costs ↓50%

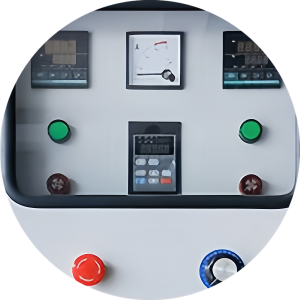

PLC Intelligent Temperature Control
- PID algorithm + multi-layer protection
- Prevents metal overheating
Smart Power Management
- Soft-start protects power grid
- Auto frequency conversion saves 15-20% energy
- Solar-compatible

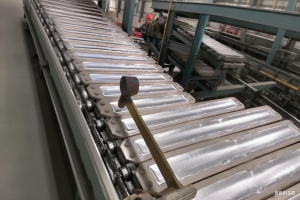

Applications
Customer Pain Points
Resistance Furnace vs. Our High-Frequency Induction Furnace
| Features | Traditional Problems | Our Solution |
| Crucible Efficiency | Carbon buildup slows melting | Self-heating crucible maintains efficiency |
| Heating Element | Replace every 3-6 months | Copper coil lasts years |
| Energy Costs | 15-20% annual increase | 20% more efficient than resistance furnaces |
.
.
Medium-Frequency Furnace vs. Our High-Frequency Induction Furnace
| Feature | Medium-Frequency Furnace | Our Solutions |
| Cooling System | Relies on complex water cooling, high maintenance | Air cooling system, low maintenance |
| Temperature Control | Rapid heating causes overburning of low-melt metals (e.g., Al, Cu), severe oxidation | Auto-adjusts power near target temp to prevent overburning |
| Energy Efficiency | High energy consumption, electricity costs dominate | Saves 30% electric energy |
| Ease of Operation | Requires skilled workers for manual control | Fully automated PLC, one-touch operation, no skill dependency |
Installation Guide
20-minute quick installation with complete support for seamless production setup
Why Choose Us
Flexible adaptability
Flexible configuration based on different energy sources, application scenarios, and metal types to meet the diverse needs of customers.
Efficient and energy-saving
Adopting advanced heating technology to improve energy efficiency, reduce production costs, and minimize environmental pollution.
Precise temperature control
Equipped with an intelligent temperature control system to ensure the stability of the metal melting process and improve the quality of castings.
Strong durability
The crucible material is resistant to high temperatures and corrosion, and the equipment design has a long service life, reducing long-term maintenance costs.
