Silicon carbide combined with silicon nitride degassing rotor used in degassing process
What is silicon carbide (SiC) and silicon nitride (Si₃N₄) composite rotors?
The degassing rotor made of silicon carbide (SiC) and silicon nitride (Si₃N₄) composite is a high-performance ceramic material rotor, primarily used for degassing and purification in the smelting of non-ferrous metals such as aluminum and magnesium. This composite ceramic rotor combines the high thermal conductivity of SiC with the excellent fracture toughness of Si₃N₄, making it an ideal choice for high-end metallurgical degassing equipment.
Our advantages
Innovative Structural Design
Gradient Composite Design: Inner layer of high-density silicon carbide ensures superior wear resistance, while the outer silicon nitride network guarantees structural strength.
Streamlined Inner Cavity: Reduces fluid resistance, improving transport efficiency by up to 30%.
Modular Connection Interface: Enables quick and easy installation and maintenance.
How We Customize Your Graphite Rotor
| Customization Aspects | Details |
|---|---|
| Material Selection | High-quality graphite tailored for thermal conductivity, corrosion resistance, and more. |
| Design and Dimensions | Custom-designed according to size, shape, and specific application requirements. |

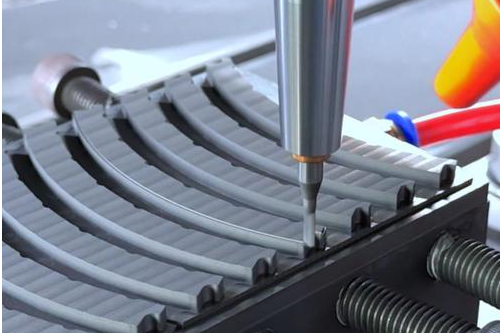

| Processing Techniques | Precise cutting, milling, drilling, grinding for accuracy. |
| Surface Treatment | Polishing and coating for enhanced smoothness and corrosion resistance. |
| Quality Testing | Stringent testing for dimensional accuracy, chemical properties, and more. |
| Packaging and Transportation | Shockproof, moisture-proof packaging to protect during shipment. |
Technical Specifications
| Property | Value Range | Composition | Value Range |
|---|---|---|---|
| Density (g/cm³) | 2.65–2.8 | SiC (%) | 70–75 |
| Porosity (%) | 12–15 | Si₃N₄ (%) | 18–24 |
| Bending Strength at RT (MPa) | 40–55 | SiO₂ (%) | 2–6 |
| Bending Strength at HT (MPa) | 50–65 | Fe₂O₃ (%) | 0.5–1 |
| Thermal Conductivity (W/m·K, 1100°C) | 16–18 | Si (%) | <0.5 |
| Thermal Expansion (×10⁻⁶/°C) | 4.2 | Max. Service Temp. (°C) | 1600 |
Why Choose Our Degassing Rotors?
We leverage 20+ years of experience in manufacturing cutting-edge crucibles and rotors designed for the most demanding industrial applications. Our Silicon carbide combined with silicon nitride degassing rotors provide superior performance, maximizing efficiency, and minimizing operational costs for businesses worldwide.
Key Features of Our Degassing Rotors
Strong resistance to molten metal erosion and no pollution to molten metal;
Good thermal shock resistance, no slagging or cracking at high temperatures;
Good airtightness, not easy to stick to aluminum, not easy to accumulate slag, and avoid porosity defects in castings;
Low maintenance requirements, long service life, and high cost-effectiveness.
Superior Material Performance
Maintains stable performance even in extreme smelting conditions
High-Efficiency Process Technology
Ensures uniform temperature distribution in molten metal
20 Years Global Service Experience
Supported by mature international supply chains
Applications
Zinc Industry
Removes oxides and impurities
Ensures clean zinc coating on steel
Improves fluidity and reduces porosity
Aluminum Smelting
↓ Blistering in final products
Reduces slag/Al₂O₃ content
Grain refinement enhances properties
Aluminum Die Casting
Avoids contaminant introduction
Cleaner aluminum reduces mold erosion
Minimizes die lines and cold shuts
Frequently Asked Questions
Need help? Be sure to visit our support forums for answers to your questions!
After receiving your drawings, I can provide a quotation within 24 hours.
We offer shipping terms such as FOB, CFR, CIF, and EXW. Airfreight and express delivery options are also available.
We use robust wooden boxes or customize the packaging according to your requirements to ensure safe delivery.
Pre-heat to 300°C before immersion (video guide available)
Clean with nitrogen after each use – Never water-cool!
7 days for standards, 15 days for reinforced versions.
1 piece for prototypes; bulk discounts for 10+ units.
Factory Certifications
Trusted by Global Leaders – Used in 20+ countries
